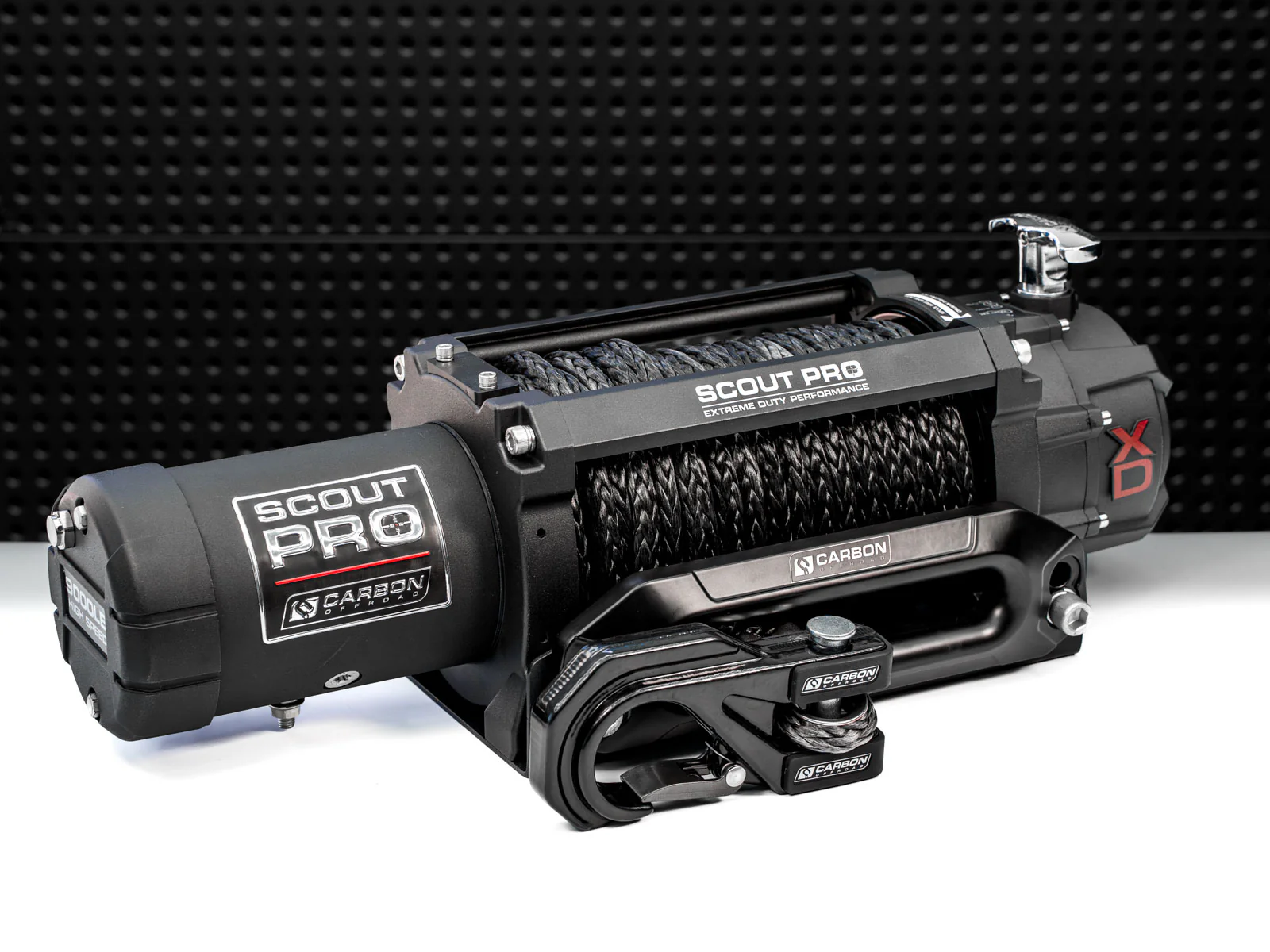

Carbon Scout Pro – 9000lb Winch V3: Extreme Performance

For those who pilot heavy dual-cab utes, large SUVs, or American trucks like the RAM or Silverado through challenging terrain, a standard winch simply won’t suffice. At Dirt Boy 4×4, we present the Carbon Scout Pro – 9000lb Winch V3—an Extreme Duty Performance Series winch built specifically to meet the high demands of these heavier vehicles. This isn’t just a basic 9,000lb unit; it’s a precision-engineered powerhouse designed for reliable, high-performance winching straight out of the box.

Power and Speed Defined

The core strength of the Carbon Scout Pro – 9000lb Winch V3lies in its uncompromising motor and gearbox pairing. It features a formidable 7.0 HP High-Torque Motor that ensures superior pulling power even when the line is heavily loaded. This potent motor is perfectly matched with a 104:1 Heavy Duty Performance Gearbox, a ratio engineered to deliver both immense strength and exceptional speed. With a line speed of 62.3 ft/min (19 m/min) at no load, the Carbon Scout Pro – 9000lb Winch V3 is one of the fastest units in its class, drastically reducing recovery time. Even under full load, the line speed remains impressive at 10.5 ft/min (3.2 m/min) at the rated 9,000 lbs (4090 kg) capacity, drawing 380 Amps.

To reliably handle the high amperage draw of the powerful motor, the winch is equipped with a Heavy Duty Upgraded Solenoid that is rated 100 amps higher than the solenoid used in the proven CW-12K model. This critical component ensures robust electrical performance and long-term reliability under sustained heavy use.

Built on a Proven Platform

The Carbon Scout Pro – 9000lb Winch V3 benefits from shared DNA with its larger capacity siblings, utilising the robust Carbon Offroad 2023 V3 Winch Chassis. This shared platform guarantees structural integrity and durability, confirming that the entire assembly is built to withstand the physical stresses of extreme recovery. The winch comes spooled with 10mm UHMWPE Synthetic Rope, a premium, pre-stretched material that offers minimum breaking strain rated at a substantial 9,000kg. This lightweight yet incredibly strong synthetic line is safer to handle and provides superior performance compared to traditional steel cable.

Safety and ease of use are further enhanced by the included premium accessories. The kit features an HD Braced Winch Thimble for secure connections and the flagship MEGAPRO CNC Billet Fairlead, which provides an ultra-smooth exit point for the synthetic rope, reducing friction and abrasion.

Installation and Compatibility Considerations

While the Carbon Scout Pro – 9000lb Winch V3 is designed for the high end of the 4WD market, users should note its physical size. Due to the powerful 7.0 HP High-Torque Motor, this winch is slightly longer than many standard units. Dirt Boy 4×4 recommends checking vehicle-specific dimensions carefully before installation, although it is an ideal fit for wider vehicles such as RAM, F-Truck, and Silverado, as well as popular dual cab utes and LandCruisers (70/200 Series).

By providing reliable 9000lb pulling power, exceptional speed, and a heavy-duty chassis/solenoid system, the Carbon Scout Pro – 9000lb Winch V3 ensures you have the recovery capacity you need when you are kilometres from the nearest road. The comprehensive warranty coverage underscores our confidence in the quality and performance of the Carbon Scout Pro – 9000lb Winch V3. Choose the Carbon Scout Pro – 9000lb Winch V3 for your next adventure
