Carbon Scout Pro – 15000lb Winch V3: Extreme Duty Power for Heavy Rigs

When your adventure takes you far beyond the limits of standard recovery gear, you need a winch that delivers uncompromising power and reliability. At Dirt Boy 4×4, we know that modern 4WDs—packed with touring gear, heavy protection, and accessories—often exceed the capacity of traditional 12,000lb units. This is why we proudly offer the Carbon Scout Pro – 15000lb Winch V3, the ultimate bridge between light-duty recovery and true truck-grade power. Engineered for the heaviest modified vehicles, this V3 generation winch provides a massive 15,000 lbs (6,803 kg) of rated single-line pull, giving you the confidence to conquer any sticky situation the Australian bush presents.

Fact-Driven Performance and Heavy-Duty Motor

The formidable power of the Carbon Scout Pro – 15000lb Winch V3 stems from its high-torque, 12V DC 7.0HP series wound motor. This significantly uprated motor generates the necessary grunt to move fully-laden rigs, ensuring that recovery is swift and stress-free. For specialised applications, a 24V motor option is also available.

Power transmission is handled by a rugged three-stage planetary geartrain with a carefully balanced 218:1 gear ratio. This configuration maximises torque output while maintaining operational speed, delivering a line speed of 3.6 ft/min (1.1 m/min) under a full 15,000 lb load, drawing a controlled 380 Amps. The robust design guarantees mechanical durability, backed by a Lifetime Mechanical Warranty on the geartrain, a testament to the build quality of the Carbon Scout Pro – 15000lb Winch V3.

Safety and load control are paramount, which is why this winch features a full-load automatic brake system housed within the motor bracket. This critical feature automatically secures the load the moment winching stops, offering superior peace of mind during complex angled recoveries.

Premium Components for Extreme Conditions

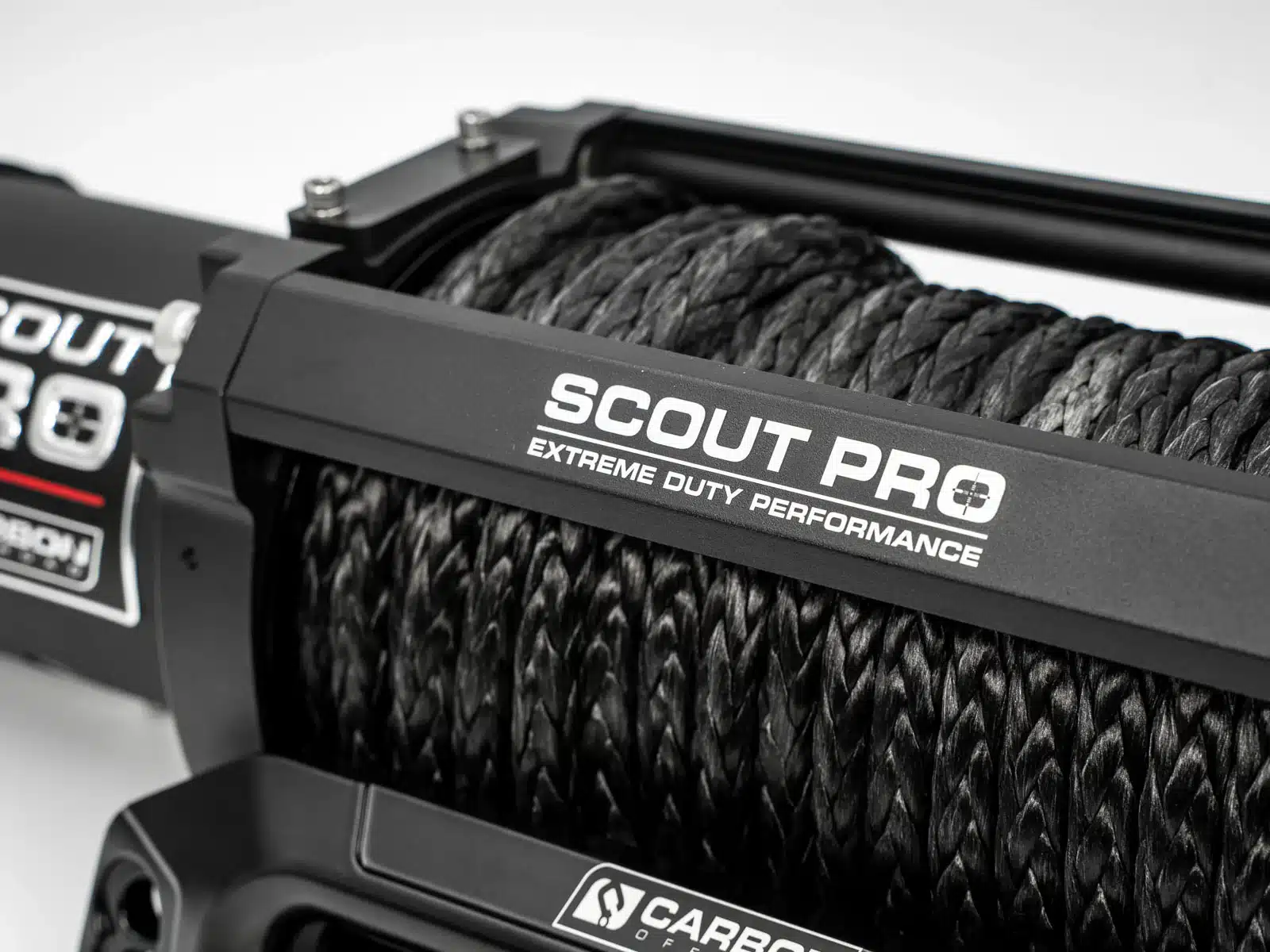

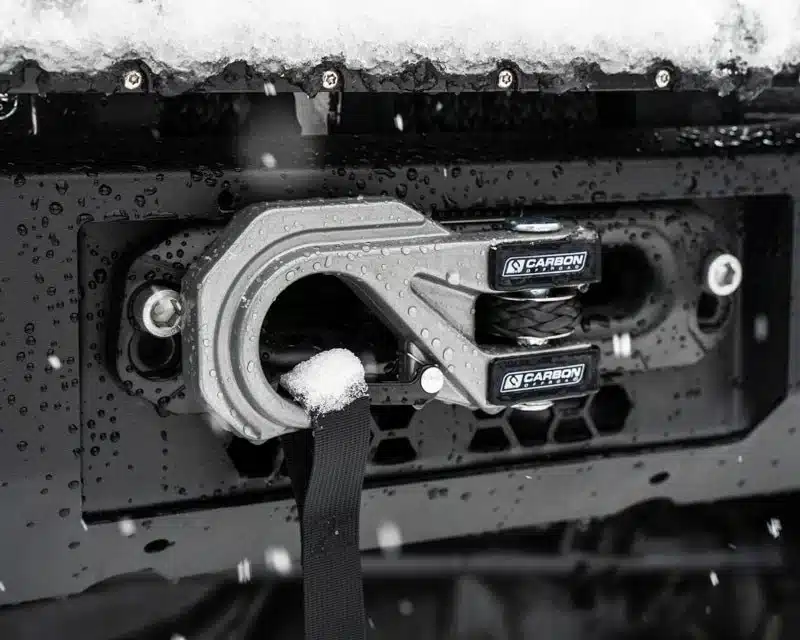

The Carbon Scout Pro – 15000lb Winch V3 is built around the highest quality recovery components. It comes spooled with 24 meters of 11mm diameter UHMWPE Synthetic Rope, which is lighter, safer, and far stronger than traditional steel cable. The rope is terminated with a forged thimble and includes a high-visibility, heavy-duty MegaPro Hook. To guide this powerful synthetic line, the kit includes a Carbon Offroad MEGAPRO Premium CNC billet type 3 hard anodised fairlead. This multi-position fairlead is essential for reducing friction and protecting the rope against wear and tear from aggressive recovery angles.

Furthermore, the unit is constructed to shrug off the elements. It comes with a 5-Year Water Ingress Protection Warranty, underscoring its ability to perform in deep water crossings, driving rain, and corrosive coastal conditions.

Dimensions, Control, and Easy Integration

Despite its extreme pulling capacity, the physical dimensions of the Carbon Scout Pro – 15000lb Winch V3 are engineered for modern bull bar integration. Measuring 535mm (L) x 158mm (W) x 187mm (H), its compact size allows it to fit into most standard winch cradles, utilising the common 254mm x 114.3mm mounting bolt pattern. The entire package, including the drum (63.5mm x 224mm), rope, control box, and accessories, weighs a manageable 26.7 kg, helping to minimise undesirable front axle load.

The winch offers versatile control options: a robust wired remote with a 3.6m lead for precise operation and a wireless remote control for increased safety, allowing the operator to stand clear of the recovery zone. To ensure the 7.0HP motor receives adequate power, a minimum 650 CCA battery is recommended.

The Carbon Scout Pro – 15000lb Winch V3 is more than just a piece of equipment; it’s a vital tool for those who venture into the remote Australian landscape. With its 15,000lb capacity, superior motor, and industry-best warranty, the Carbon Scout Pro – 15000lb Winch V3 provides the necessary assurance for your heaviest recovery needs. This level of power and reliability makes the Carbon Scout Pro – 15000lb Winch V3 an unmatched choice for your vehicle.

You can secure the robust Carbon Scout Pro – 15000lb Winch V3 today Dirt Boy 4×4. The Carbon Scout Pro – 15000lb Winch V3 is ready to work.

Check out our YouTube Video where we discuss the Carbon Winch HERE
